1. Introduction

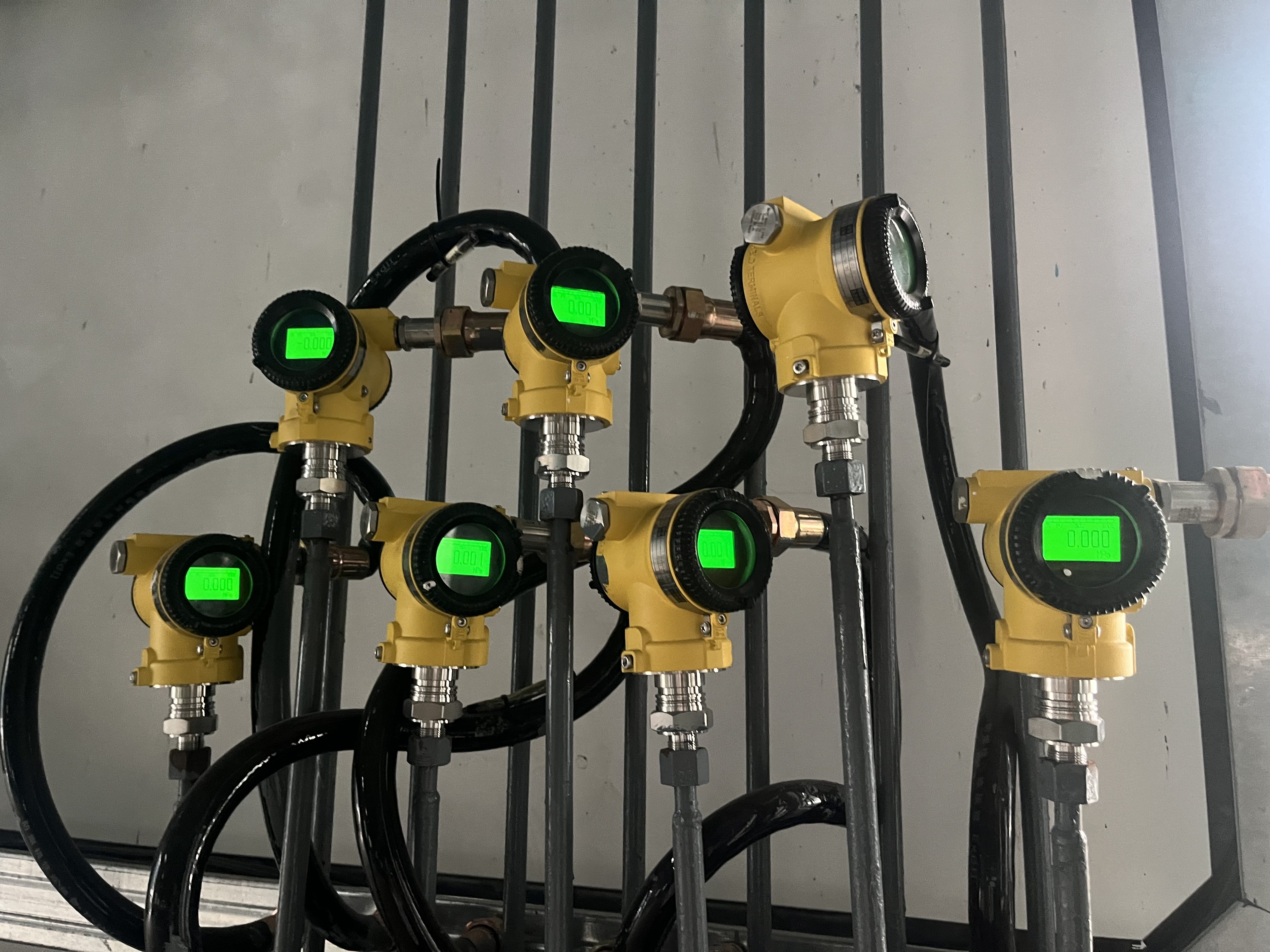

The FRD Sensor FD3051ST Smart Pressure Transmitter is designed for reliable pressure measurement and process control in industrial applications.
The FD3051ST covers a pressure range of 0–0.1 kPa to 40 MPa, with accuracy grades from ±0.05%FS to ±0.5%FS at 25°C and full scale. It supports 4–20 mA + HART and RS485 communication, and is suitable for measuring liquids, gases, and steam.
With an ambient temperature range of −40°C to +80°C and stability of 0.1% URL / 3 years, the FD3051ST is suitable for industrial automation, process equipment, system integration, and OEM applications.
2. Why Choose This Model?
Selecting a pressure transmitter requires more than simply matching the pressure range. OEMs and system integrators also need to consider accuracy, communication compatibility, environmental conditions, and customization requirements.
The FD3051ST addresses common challenges through:
1. Wide Pressure Range
The FD3051ST supports 0–0.1 kPa to 40 MPa, allowing customers to select configurations for different pressure measurement requirements.
2. Flexible Accuracy Selection
Multiple accuracy grades are available, from ±0.05%FS to ±0.5%FS, helping customers balance measurement requirements and overall equipment cost.
3. Flexible Industrial Communication
The transmitter supports 4–20 mA with HART digital protocol and RS485, facilitating integration with PLC, DCS, and other industrial control systems.
4. Reliable Industrial Operation
With an ambient temperature range of −40°C to +80°C, the FD3051ST is designed for a wide range of industrial environments.
5. OEM-Friendly Configuration
FRD Sensor supports OEM/ODM, Private Label, and mechanical/electrical customization, providing greater flexibility for equipment manufacturers and system integrators.
3. Model Comparison Table
| Key Selection Factor |
FRD Sensor FD3051ST |
WIKA S-20 |
Yokogawa EJA530E |
| Product Type |
Smart Pressure Transmitter |
Pressure Transmitter |
Gauge Pressure Transmitter |
| Pressure Range |
0–0.1 kPa to 40 MPa |
0–0.4 to 1,600 bar |
— |
| Accuracy |
Up to ±0.05%FS |
Non-linearity up to 0.125% of span |
±0.055% |
| Rangeability / Rangedown |
Up to 100:1 |
— |
Up to 100:1 |
| Stability |
≤0.1% URL / 3 years |
— |
±0.1% per 10 years |
| Communication |
4–20 mA + HART / RS485 |
4–20 mA, 0–10 V, 1–5 V and others |
— |
| Process Medium |
Liquids, gases, or steam |
— |
— |
| OEM / ODM Support |
Available for OEM equipment manufacturers and system integrators |
Standard product offering |
Standard product offering |
| Private Label |
Available for qualified OEM projects |
— |
— |
| Mechanical / Electrical Customization |
Available |
Standard configurations |
Standard configurations |
| Batch Supply |
High-consistency batch production and delivery |
Global supply |
Global supply |
| OEM Partnership Value |
Competitive product performance + flexible customization + direct manufacturer support |
Established international brand |
Established international brand |
Products Parameters
| Range |
0-0.1kPa～40MPa |
| Accuracy |
±0.05%FS, ±0.075%FS, 0.1%FS, 0.2(0.25)%FS, 0.5%FS (at 25℃, full scale) |
| Output Signal |
Two-wire system (4～20)mA with superimposed digital protocol (HART), RS485 protocol |
| Process Medium |
Liquids, gases, or steam |
| Power Supply |
(12～32)VDC (24VDC recommended) |
| Ambient Temperature |
(-40～80)℃ |
| Stability |
0.1%URL/3 years |
4. FRD Sensor FD3051ST OEM & ODM Customization Services
FRD Sensor provides OEM and ODM customization services for the FD3051ST to support different equipment and system integration requirements.
Customization options may include:
- Pressure range and accuracy grade
- Process and electrical connections
- Output and communication configuration
- Mechanical structure
- Nameplate, logo, and Private Label
- Product labeling and packaging
FRD Sensor supports customers from technical requirement confirmation and sample development to mass production, helping OEM customers simplify integration and maintain consistent batch quality.
5. FRD Sensor FD3051ST Pressure Transmitter Measurement Accuracy Troubleshooting Guide
Measurement deviation can sometimes result from installation, wiring, environmental conditions, or incorrect configuration rather than the transmitter itself.
1. Check the Pressure Range
Confirm that the selected pressure range matches the actual operating pressure.
2. Check Installation
Inspect the process connection, pressure line, sealing, and installation condition for leakage or blockage.
3. Check Temperature
Confirm that the operating environment is within the specified −40°C to +80°C range.
4. Check Power and Wiring
Verify the 12–32 VDC power supply, wiring polarity, grounding, and output loop.
5. Check Communication
For HART or RS485 applications, verify communication settings, wiring, and configuration parameters.
6. Check Calibration
If measurement deviation remains after the above checks, verify the transmitter using a calibrated pressure source and follow the appropriate calibration procedure.
7. Product Certifications
8. Conclusion
FRD Sensor FD3051ST Pressure Transmitter combines high accuracy, stable performance, and strong environmental adaptability to meet modern industrial pressure measurement requirements.
With flexible OEM & ODM customization capabilities and reliable technical support, FRD Sensor provides efficient and dependable pressure measurement solutions for global industrial applications.
